N-type TOPCon
Higher efficiency and lower light-induced degradation than P-type cells.
Up to 23.23%
Zenith · N-Type TOPCon

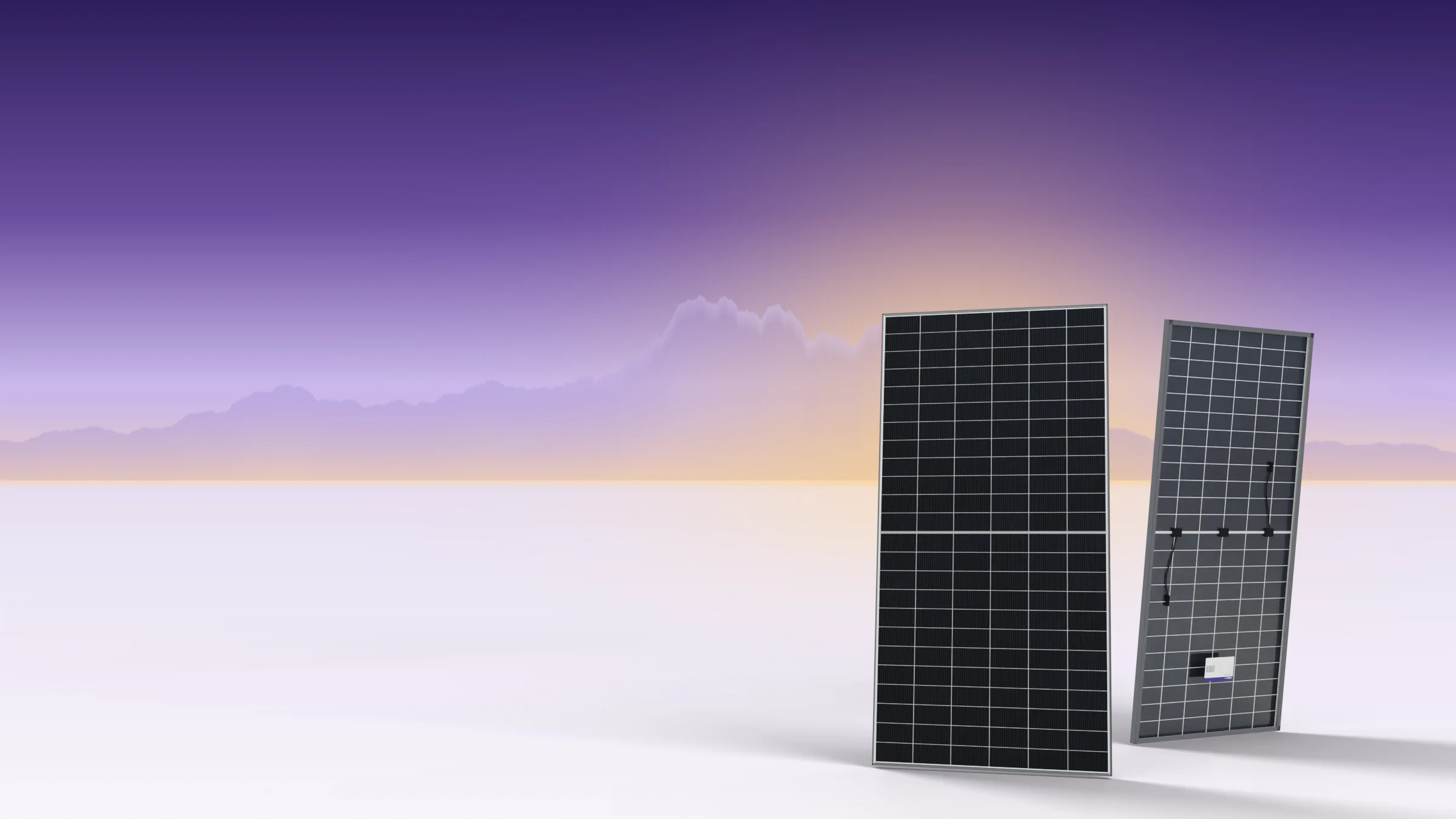

Zenith M10R
N-type TOPCon in the M10R format: 144 half-cells in a bifacial dual-glass module that fits standard mounting structures, with a 30-year performance warranty.
580–600 WPower range
23.23%Maximum module efficiency
144M10R half-cells
2278 × 1134 mm32 kg · 35 mm frame
Bifacial dual glassZENITH ZTM-AAA-144
Technical excellence
Engineered where it matters.
M10R format
144 rectangular half-cells in a familiar 2278 mm module size.
580–600 W
Dual glass
2 mm glass on both faces for durability and bifacial generation.
2 + 2 mm glass
Better in the heat
A lower temperature coefficient holds output on hot Indian days.
−0.30 %/°C

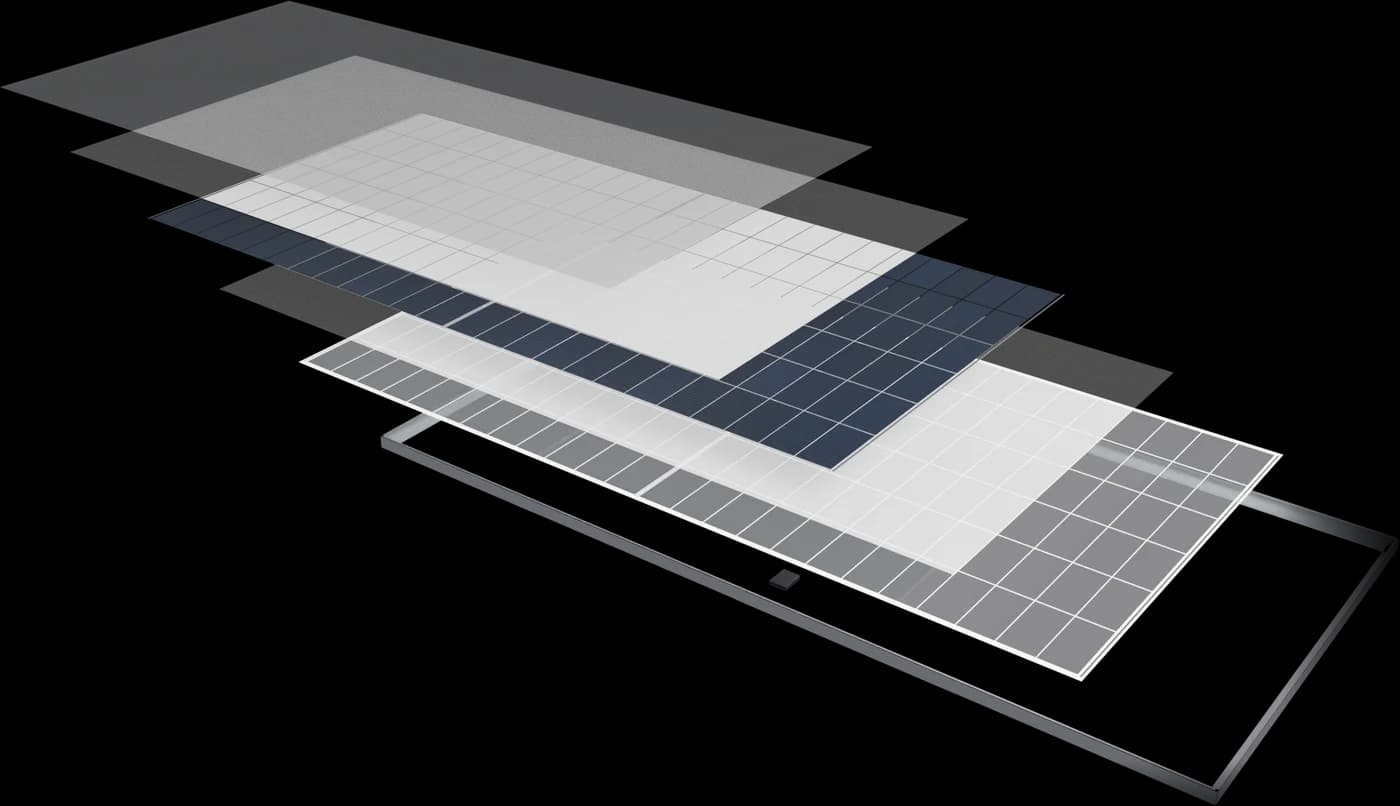

Construction
Seven layers, one laminate.
- Front glass2 mm AR-coated, heat-strengthened
- EncapsulantBonds and protects the cell matrix
- Cells144 N-type TOPCon M10R half-cells
- EncapsulantRear bonding layer
- Rear glass2 mm glass with a white grid glaze between cells
- FrameAnodised aluminium, 35 mm
- Junction boxIP68 split box with MC4-compatible connectors
Power your renewable future with us.
Talk to our team about Zenith M10R for your next project or OEM programme — specifications, volumes and delivery.
