Half-cut cells
Lower resistive losses and better tolerance to partial shading.
144 half-cells · M10
Everest · MonoPERC
Everest Peak

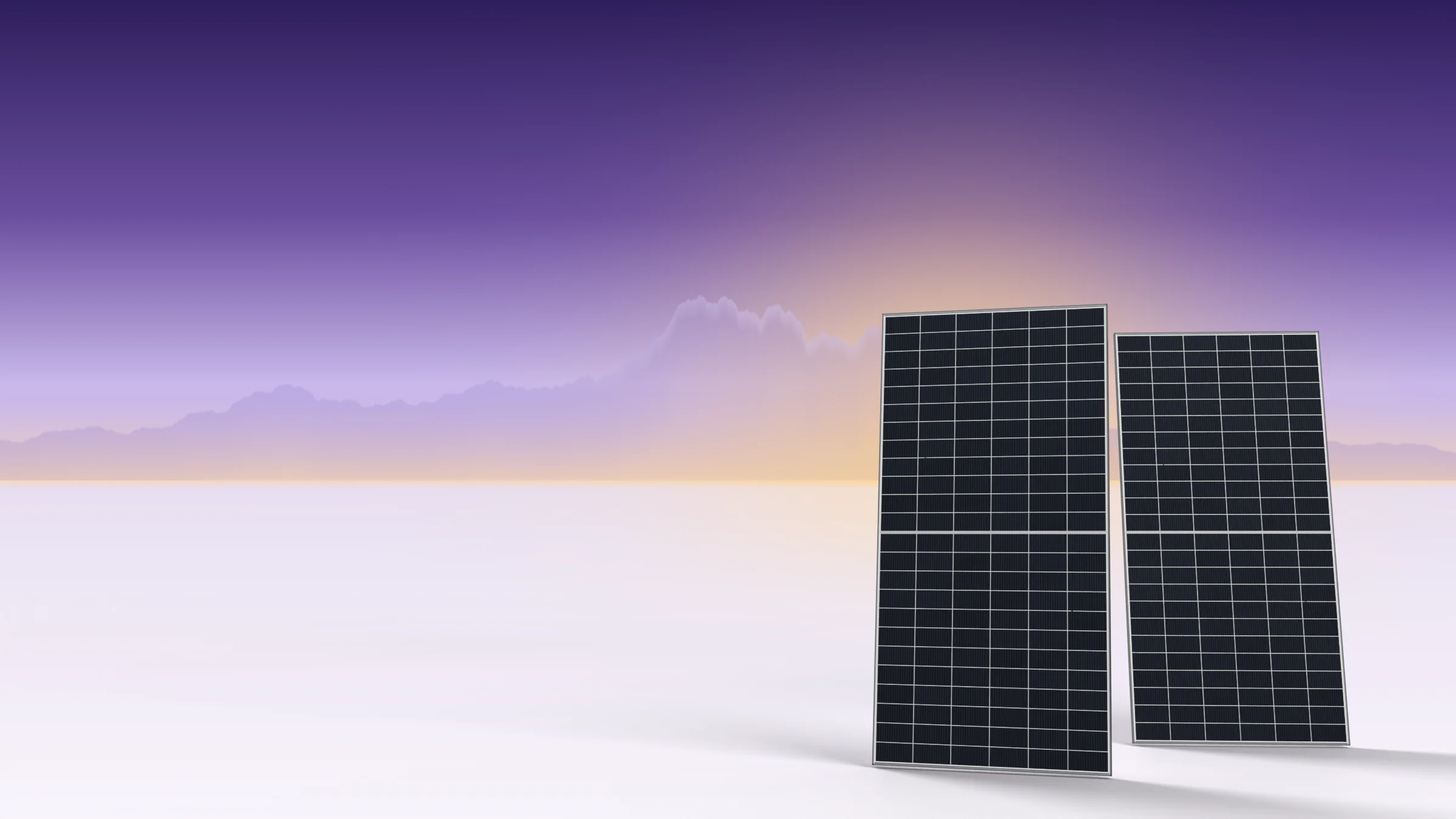

A proven 144 half-cell MonoPERC module with an opaque white backsheet, built for dependable yield on rooftops and ground-mount plants.
525–550 WPower range
21.31%Maximum module efficiency
144M10 half-cells
2278 × 1133 mm28.2 kg · 35 mm frame
ALMM listedBIS certifiedPEAK ESM-AAA-144
Technical excellence
Engineered where it matters.
Multi-busbar
Shorter current paths and more resilience to micro-cracks.
MBB interconnect
PID resistant
Tested to IEC 62804 for stable output in humid, high-voltage arrays.
IEC 62804
Split junction box
IP68 split box with individual bypass diodes and a 1500 V rating.
IP68 · 1500 V DC

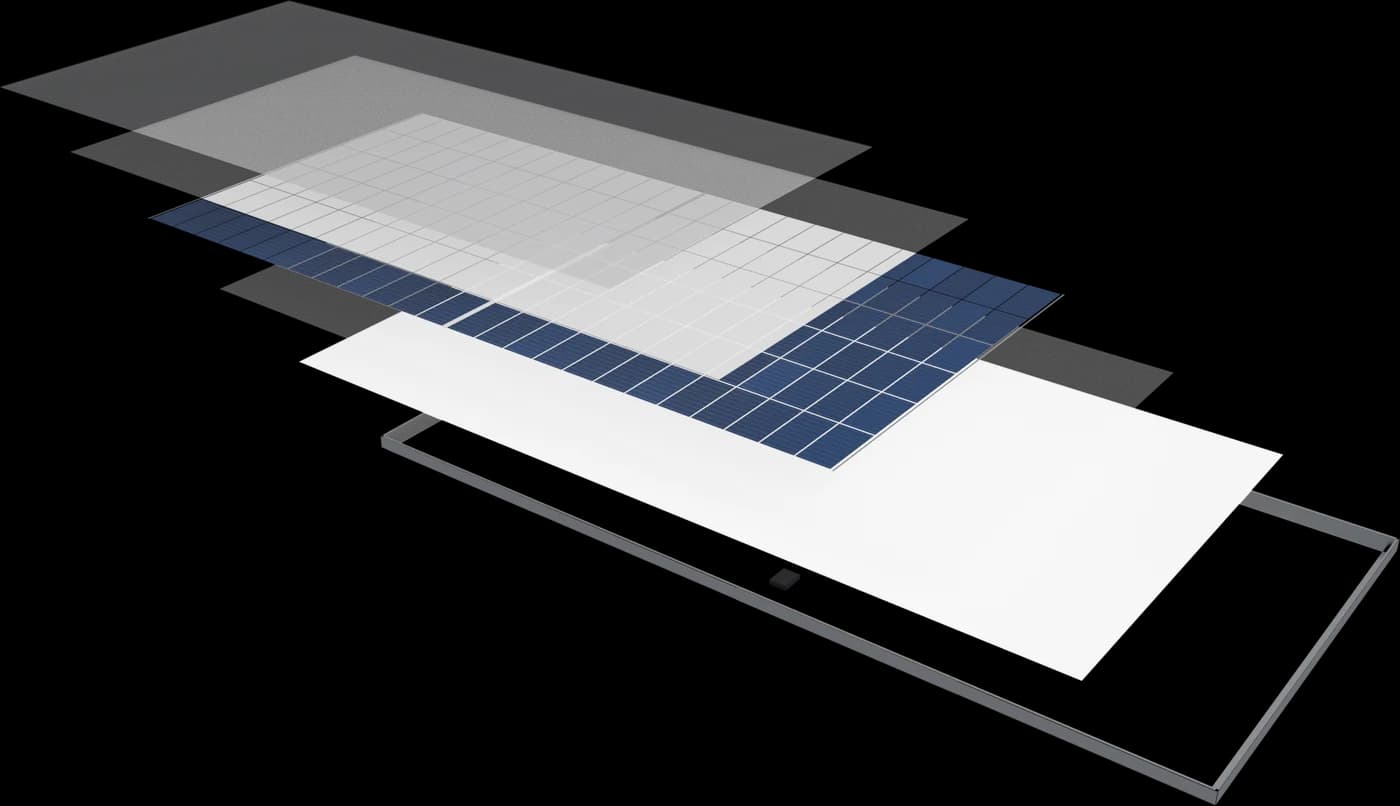

Construction
Seven layers, one laminate.
- Front glass3.2 mm high-transmission, AR-coated, tempered
- EncapsulantBonds and protects the cell matrix
- Cells144 MonoPERC half-cells, multi-busbar interconnect
- EncapsulantRear bonding layer
- White backsheetOpaque composite film that reflects light back into the cells
- FrameAnodised aluminium, 35 mm · 5400 Pa snow / 2400 Pa wind
- Junction boxIP68 split box with MC4-compatible connectors
Power your renewable future with us.
Talk to our team about Everest Peak for your next project or OEM programme — specifications, volumes and delivery.
